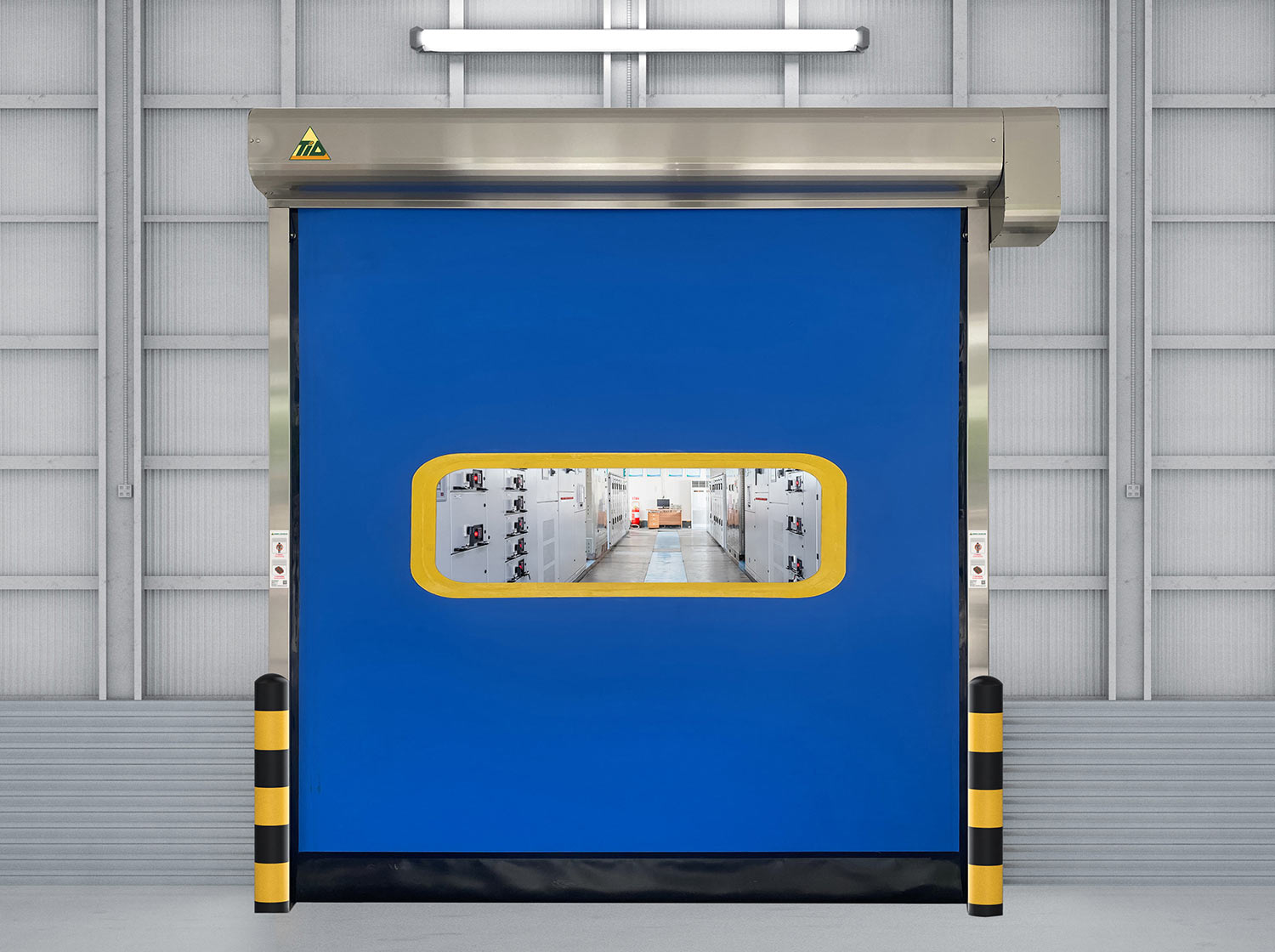

Airtight fast rolling shutter door

TID-QM
2023120914025086

【Brand】 TID

【Product】Airtight fast rolling shutter door

【Features】 High airtightness, high quietness, high speed, modular installation

【Advantages】Integrated track sealing design, anti-collision design, advanced frequency converter drive technology

【Applicable scenarios】 Areas with high requirements for sealing and energy conservation, such as food factories, dust-free workshops, purification workshops, chemical plants, etc

【Customizable Type】 Explosion proof rapid type, intelligent sensing and other interconnected systems

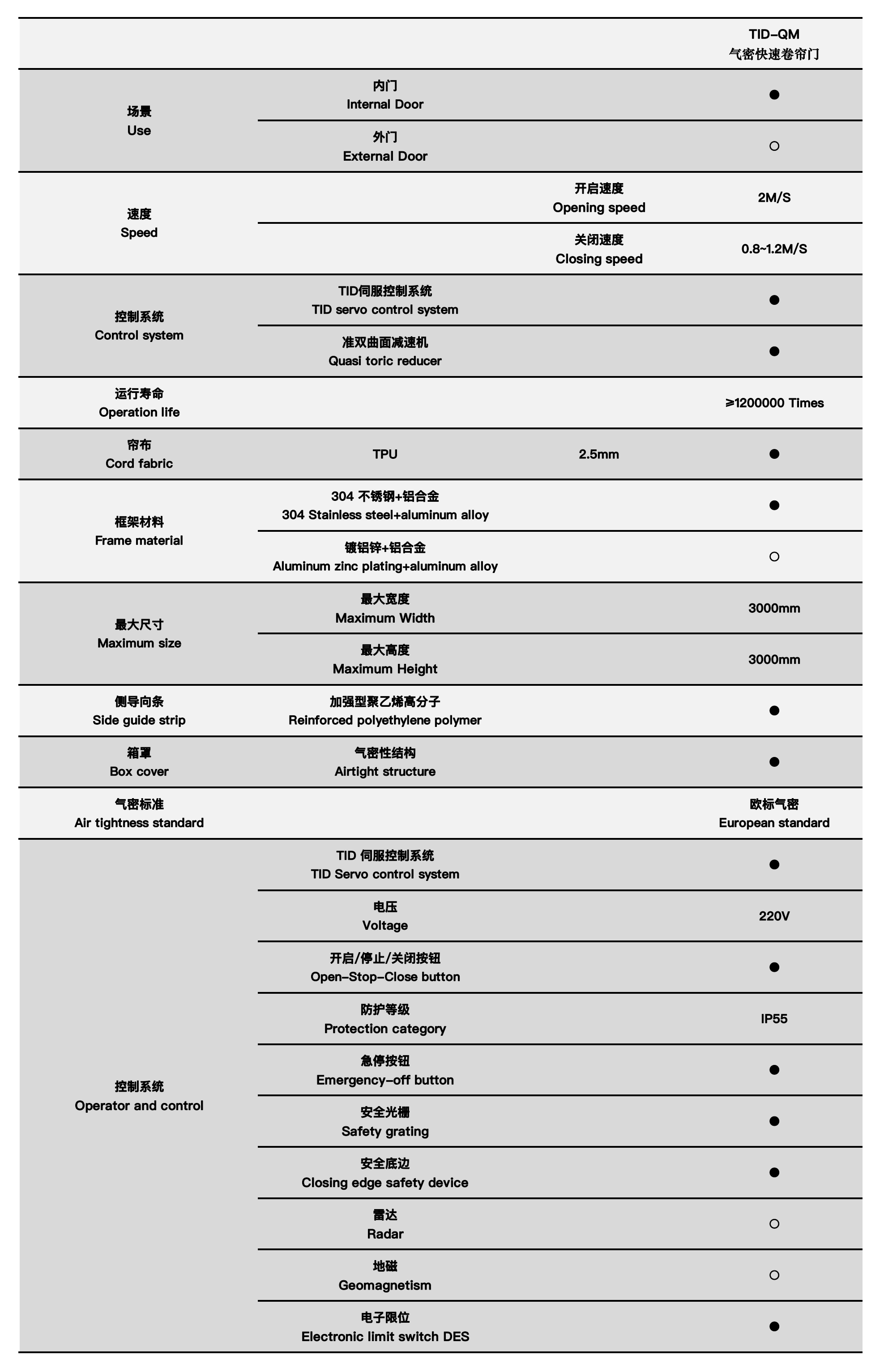

Product parameters

2024031205131262

Product advantages

2024030807485111

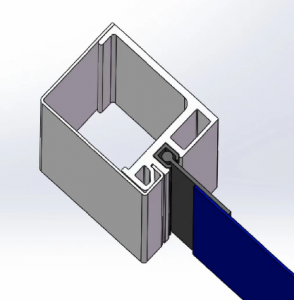

Aluminum alloy integrated molding sealed track, surrounded by 304 stainless steel, maximizes the solution to problems such as insufficient sealing in usage scenarios

202403080822557

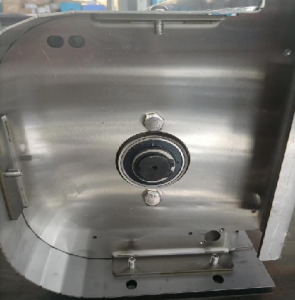

Airtight design packaging box, 304 stainless steel seamless bending process

2024030807542411
2024030807545113

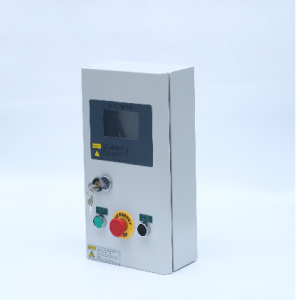

TID visual operation control system is easy and easy to debug

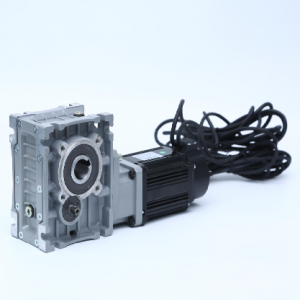

TID high-power servo motor system, high sensitivity, service life ≥ 1.2 million times

2024030808223335
2024030807510214

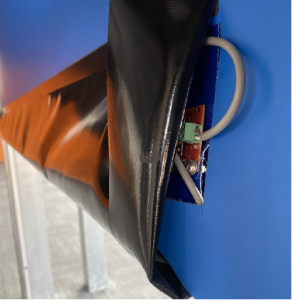

High sensitivity and safety bottom line, safety meets international standards

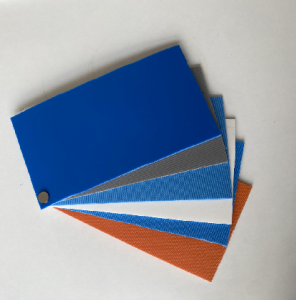

Adopting European technology, 2.5mm thick TPU fabric+anti-static coating treatment. Can meet explosion-proof standards.

Customer care

Q: What is an airtight fast rolling shutter door?

Answer: The airtight fast rolling shutter door is an upgraded version of the ordinary fast rolling shutter door. The airtight fast rolling shutter door originated in Europe and is mainly suitable for scenarios with high requirements for airtightness and energy consumption. For scenarios with high requirements for airtightness, such as food workshops and purification workshops, the use of airtight fast rolling shutter doors can effectively block dust and bacteria; In scenarios with high energy consumption requirements, such as summer factory work environments, using airtight fast rolling shutter doors can quickly cool down the working environment by air conditioning, and the efficient airtightness can maintain indoor temperature balance for a long time, greatly saving energy consumption and enterprise work costs





Q: What standards should airtight fast rolling shutter doors meet?

Answer: The airtight fast rolling shutter door should meet the following performance requirements: for example, the speed is fast, and the opening speed should be around 2M/second to achieve rapid air isolation performance; Integrated door curtain, which should be a composite integrated door curtain composed of PVC and TPU, without any metal hardware, to achieve complete sealing between the door curtain and the track and solve the problem of condensation water droplets caused by fast rolling shutter doors containing metal parts; The composite integrated track should be a double-layer sealed track designed with independent mold opening to match the integrated door curtain. The ordinary bending process track cannot meet the airtightness requirements at all; The packaging box should be designed for sealing, and the sealing performance of the entire door should meet the European standard EN13241-1





Q: What is the fastest delivery time for TID airtight quick rolling shutter doors?

Answer: The delivery time depends on different product models and bill of quantities. The delivery time for TID quick rolling shutter doors is usually within 20 days. If you need to expedite the project, please contact TID service hotline +8617312695081, and we will arrange product engineers to serve you as soon as possible
